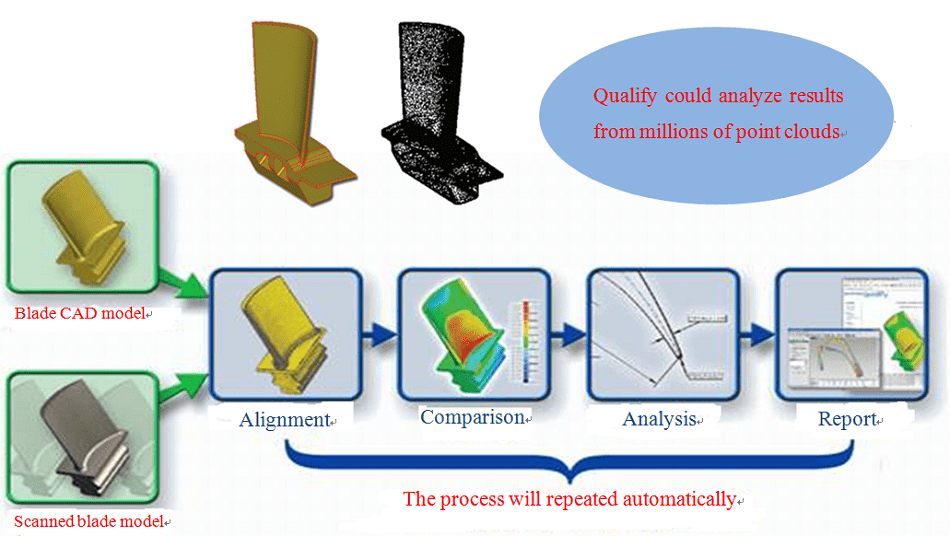

3D inspection process

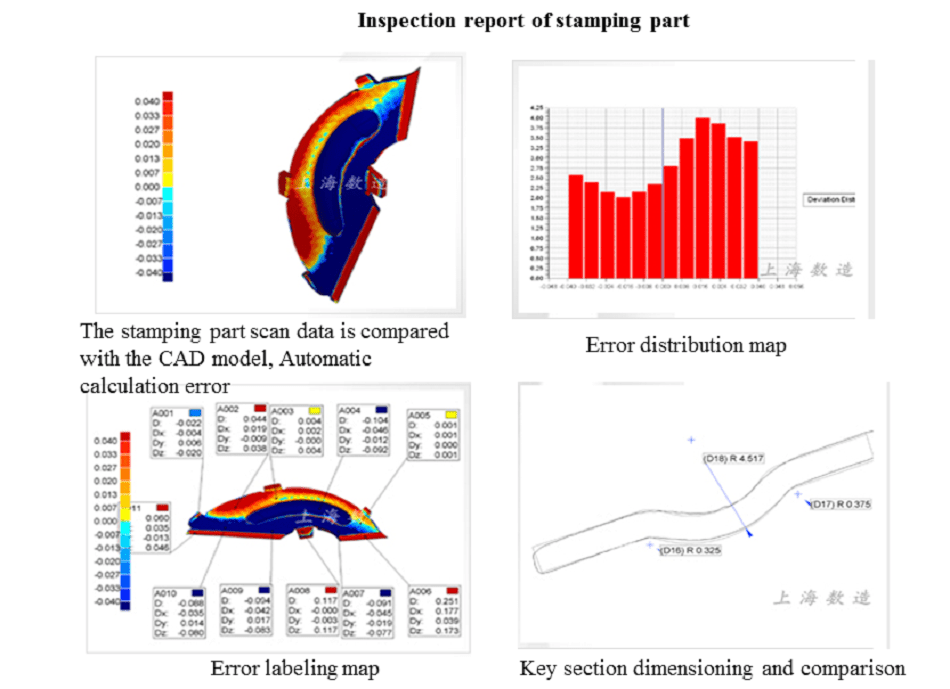

3D scanning inspection is a full-scale detection technology. The basic method is to perform partial or full-scale 3D scanning of the parts to be inspected and compare the obtained 3D point cloud with the 3D digital model to generate a color error coded picture and an intuitive detection report. It is convenient, fast, and accepted by the manufacturing industry.
Case
Problem:
Inspection tools are costly and can't adapt change of car structure.
Solution:

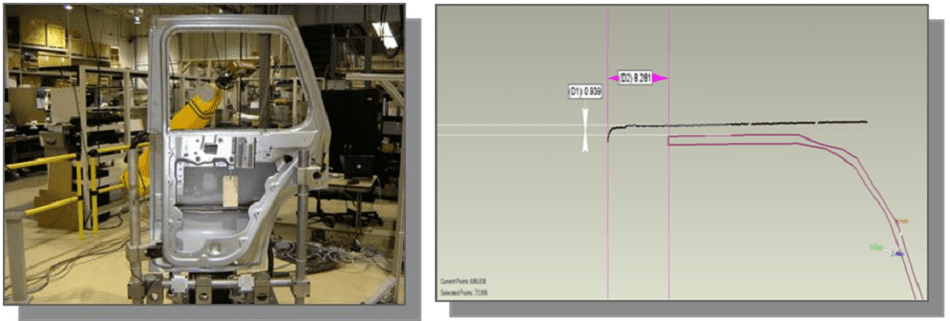

Programmable robot arm + scanner complete scan of the door and front and rear cover boundaries
Geomagic 3D inspection software automatically processes scanned data and outputs reports
Result:
Save millions of?costs of inspection tools.
5 minutes to complete testing and reporting.
