products

Handheld 3d Scanner- 3DSHANDY-22LS

Short Description:

3DSHANDY-22LS is a handheld 3d scanner with light weight (0.92kg) and is easy to carry.

14 laser lines + additional 1 beam scanning deep hole + additional 7 beams to scan details, a total of 22 laser lines.

Fast scanning speed, high precision, strong stability, dual industrial cameras, automatic marker splicing technology and self-developed scanning software, ultra-high scanning accuracy and work efficiency.

This product has been widely used in the field of reverse engineering and three-dimensional inspection. The scanning process is flexible and convenient, suitable for various complex application scenarios.


Product Detail

Parameter

Application Cases

Product Tags

Introduction of handheld laser 3D scanner

3DSHANDY-22LS Characteristics

3DSHANDY-22LS adopts the latest handheld design, has light weight (0.92kg), and is ready to use.

It has 14 laser lines + additional 1 beam scanning deep hole + additional 7 beam to scan details, a total of 22 laser lines.

It has fast scanning speed, high precision, strong stability, dual industrial cameras, automatic marker splicing technology, self-developed scanning software, and ultra-high scanning accuracy and work efficiency.

It has been widely used in the field of reverse engineering and three-dimensional inspection. The scanning process is flexible and convenient, suitable for various complex application scenarios.

● High precision

The single-machine measurement accuracy is as high as 0.01mm, and large and medium-sized objects can be easily scanned without the help of a photogrammetric system

● Light source

22 blue laser lines, faster scanning speed and higher precision

● Fast measurement

The number of marking points is halved, 14 laser lines + 1 scanning depth + 7 scanning details

● Fine mode

Switch between fine and single laser mode to easily scan complex surfaces and dead corners of deep holes

● Flexible operation

Industrial design, small size, light weight (0.92kg), flexible and convenient, easy to operate, greatly improve work efficiency, new independent research and development technology is guaranteed

● Strong adaptability

Single hand operation, not affected by the environment, not limited by the workpiece structure and user ability

● Real-time visualization

The computer screen displays the operation interface in real time to accurately check defects and make up omissions

● Industrial design

Light weight (0.92kg), easy to carry, ready to use, high efficiency, up-to-date independent research and development technology is guaranteed

Application Cases

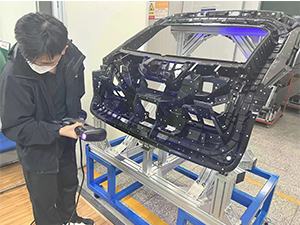

Automobile Industry

btn7

·?Competitive product analysis
· Automobile modification
· Decoration customization
· Modeling and design
· Quality control and parts inspection
· Simulation and finite element analysis

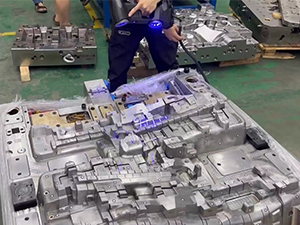

Tooling Casting

btn7

· Virtual assembly
· Reverse engineering

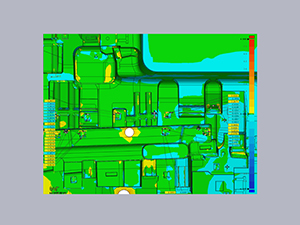

· Quality control and inspection
· Wear analysis and repair
· Jigs and fixtures design,?adjustment

Aeronautics

飛機(jī)模型

· Rapid prototyping
· MRO and damage analysis
· Aerodynamics & stress analysis
· Inspection & adjustment?of parts installation

3D Printing

包裝設(shè)計

· Molding inspection
· Reverse design of molding?to create CAD data
· End products comparison analysis
· Scanned data can be used for 3D printing?directly

Other Area

包裝設(shè)計

· Education and scientific research
· Medical and health
· Reverse design
· Industrial design


  • Previous:
  • Next:

  • Product model 3DSHANDY-22LS
    Light source 22 blue laser lines (wavelength: 450nm)
    Measuring speed 1,320,000points/s
    Scanning mode Standard mode Deep hole model Precision mode
    14 crossed blue laser lines 1 blue laser line 7 parallel blue laser lines
    Data precision 0.02mm 0.02mm 0.01mm
    Scanning distance 330mm 330mm 180mm
    Scanning depth of field 550mm 550mm 200mm
    Resolution 0.01mm (max)
    Scanning area 600×550mm (max)
    Scanning range 0.1-10 m (expandable)
    Volume precision 0.02+0.03mm/m
    0.02+0.015mm/m Combined with HL-3DP 3D photogrammetry system (optional)
    Support for data formats asc, stl, ply, obj, igs, wrl, xyz, txt etc., customizable
    Compatible software 3D Systems (Geomagic Solutions), InnovMetric Software (PolyWorks), Dassault Systemes (CATIA V5 and SolidWorks), PTC (Pro/ENGINEER), Siemens (NX and Solid Edge), Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage), etc.
    Data transmission USB3.0
    Computer configuration (optional) Win10 64-bit; Video memory: 4G; processor: I7-8700 or above; memory: 64 GB
    Laser safety level ClassⅡ (Human eye safety)
    Authentication number (Laser certificate): LCS200726001DS
    Equipment weight 920g
    External dimension 290x125x70mm
    Temperature / humidity -10-40℃; 10-90%
    Power source Input:100-240v, 50/60Hz, 0.9-0.45A; Output: 24V, 1.5A, 36W(max)

    300225?2 3?
