Introduction of handheld laser 3D scanner
3DSHANDY-30LS Characteristics
3DSHANDY-30LS is a handheld 3d scanner with light weight (0.92kg) and is easy to carry.
22 laser lines + additional 1 beam scanning deep hole + additional 7 beams to scan details, a total of 30 laser lines.
Fast scanning speed, high precision, strong stability, dual industrial cameras, automatic marker splicing technology and self-developed scanning software, ultra-high scanning accuracy and work efficiency.
This product has been widely used in the field of reverse engineering and three-dimensional inspection. The scanning process is flexible and convenient, suitable for various complex application scenarios.
● High precision
Fine mode measurement accuracy up to 0.01mm
● Fast measurement
22 laser lines + 1 scanning depth + 7 scanning details
●?Light source form
Blue laser line, faster scanning speed and higher precision
●?Multiple modes
Single beam to scan deep holes and blind spots; fine?mode to scan details;?standard mode to scan large format objects
●?Industrial design
Light weight, ready to use, high efficiency work, up-to-date technology is guaranteed
● Real-time visualization
You can see what you are doing on your computer screen?and what you?need to do
●?Flexible operation
Small size, flexible and convenient, easy to operate, easy to carry
Application Cases

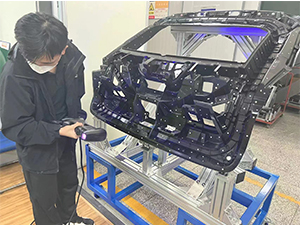

Automobile Industry
? Competitive product analysis
· Automobile modification
· Decoration customization
· Modeling and design
· Quality control and parts inspection
· Simulation and finite element analysis
Tooling Casting
· Virtual assembly
· Reverse engineering
· Quality control and inspection
· Wear analysis and repair
· Jigs and fixtures design,?adjustment
Aeronautics
· Rapid prototyping
· MRO and damage analysis
· Aerodynamics & stress analysis
· Inspection & adjustment?of parts installation
3D Printing
· Molding inspection
· Reverse design of molding?to create CAD data
· End products comparison analysis
· Scanned data can be used for 3D printing?directly
Other Area
· Education and scientific research
· Medical and health
· Reverse design
· Industrial design
| Product model | 3DSHANDY-30LS | ||
| Light source | 30 blue laser lines (wavelength: 450nm) | ||
| Measuring speed | 2,020,000points/s | ||
| Scanning mode | Standard mode | Deep hole model | Precision mode |
| 22 crossed blue laser lines | 1 blue laser line | 7 parallel blue laser lines | |
| Data precision | 0.02mm | 0.02mm | 0.01mm |
| Scanning distance | 330mm | 330mm | 180mm |
| Scanning depth of field | 550mm | 550mm | 200mm |
| Resolution | 0.01mm(max) | ||
| Scanning area | 600×550mm (max) | ||
| Scanning range | 0.1-10 m (expandable) | ||
| Volume precision | 0.02+0.03mm/m | ||
| 0.02+0.015mm/m Combined with HL-3DP 3D photogrammetry system (optional) | |||
| Support for data formats | asc, stl, ply, obj, igs, wrl, xyz, txt etc., customizable | ||
| Compatible software | 3D Systems (Geomagic Solutions), InnovMetric Software (PolyWorks), Dassault Systemes (CATIA V5 and SolidWorks), PTC (Pro/ENGINEER), Siemens (NX and Solid Edge), Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage), etc. | ||
| Data transmission | USB3.0 | ||
| Computer configuration (optional) | Win10 64-bit; Video memory: 4G; processor: I7-8700 or above; memory: 64 GB | ||
| Laser safety level | ClassⅡ (human eye safety) | ||
| Authentication number (Laser certificate): LCS200726001DS | |||
| Equipment weight | 920g | ||
| External dimension | 290x125x70mm | ||
| Temperature / humidity | -10-40℃; 10-90% | ||
| Power source | Input:100-240v, 50/60Hz, 0.9-0.45A; Output: 24V, 1.5A, 36W(max) | ||
?
?
