Resin-SZUV-S9006-high tenacity

Short Description:

Resin-SZUV-S9006 is a high tenacity resin for SLA 3D printer.

3D printer materials




Product Detail

Physical Properties

Product Tags

3D Printing Materials

Resin-SZUV-S9006

Introduction of 3D Printing Materials

Characteristics

SZUV-S9006 ???

PRODUCT DESCRIPTION?

SZUV-S9006?is an ABS like SL resin which has high-toughness?features. It is designed for solid state SLA printers.?SZUV-S9006?can be applied in master patterns, concept models, assembly parts and functional prototypes in the?field of automotive, medical and consumer electronics industries. The parts durability building with SZUV-S9006?is over 6.5months.



TYPICAL FEATURES

-Liquid resin's medium viscosity, so easy recoating, easy to clean parts and machines?

-Improved strength retained, improved dimensions retention of parts in humid condition?

-need minimal part finishing

-Long shelf life in machine

-Low bottom contraction?

?

TYPICAL BENEFITS

-Need less part finishing time, easier post-curing?

-Bulid accurate and high tough parts with an improved dimensional stability?

-High quality controls for vacuum casting parts

-Low shrink and good resistance to yellowing?

-Magnificent white color?

-Outstanding machinable SLA material??


Note: the temperature of szuv-s9006 should not be too high. Please use it below 25℃. The relative humidity for use and storage must be under 38RH%.

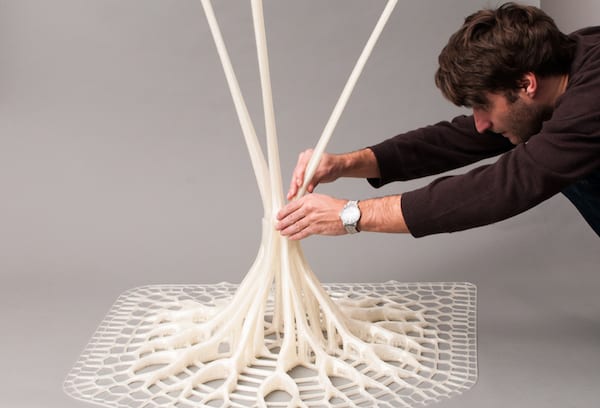

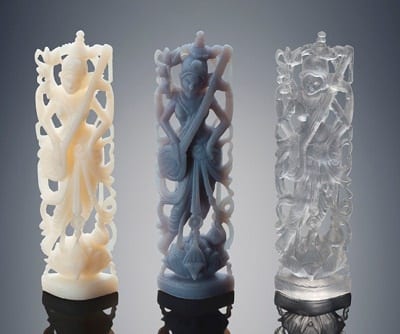

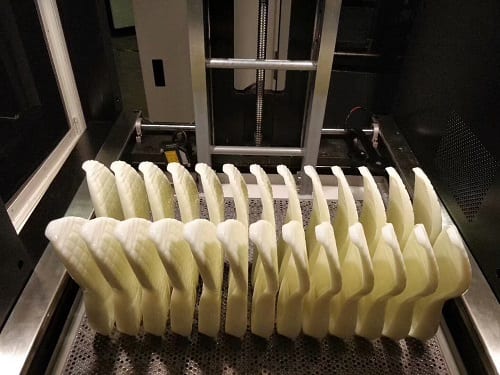

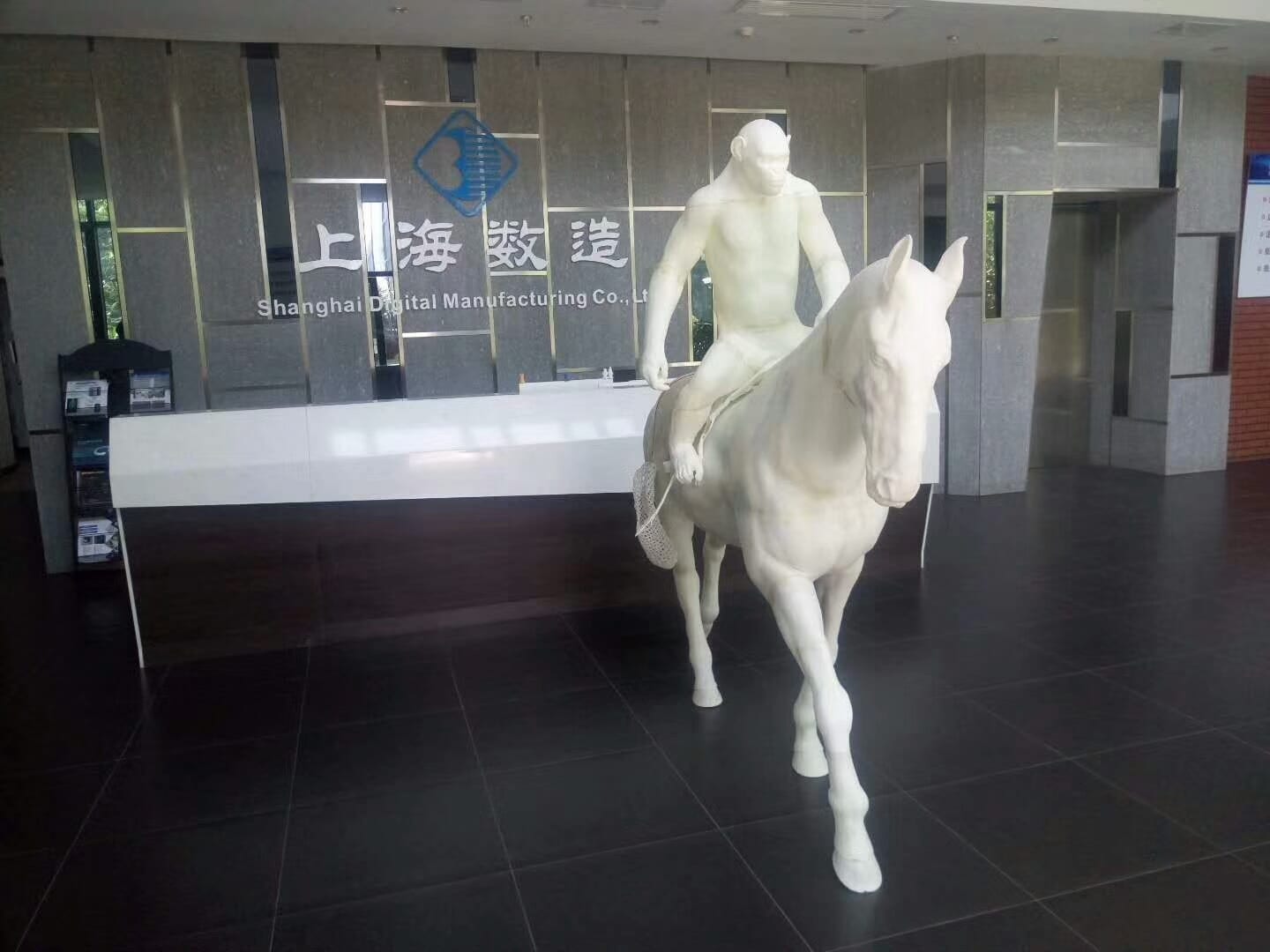

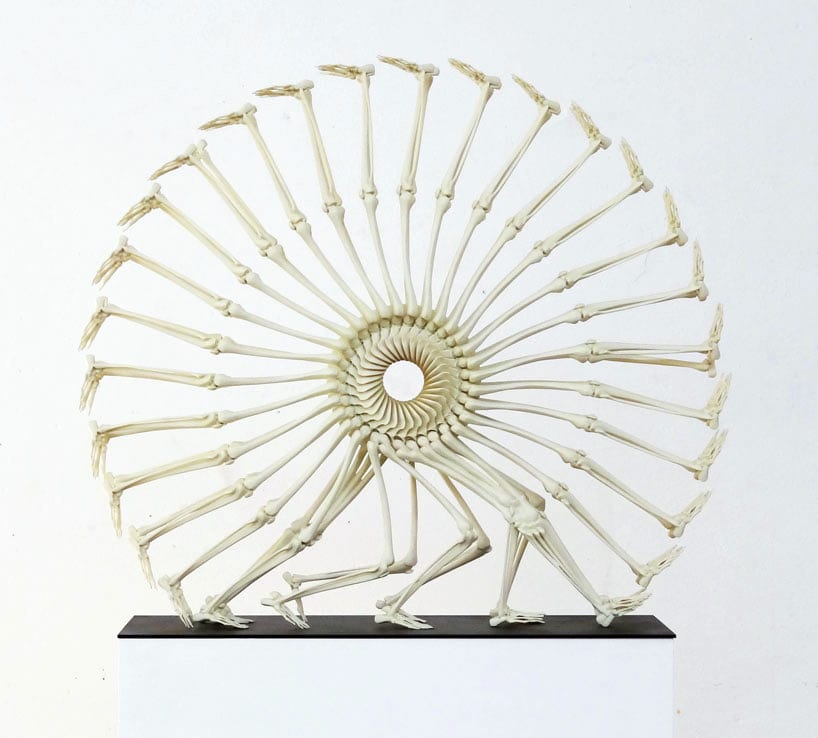

Application Cases

SOME OF MY PROJECTS

btn12
btn7
汽車配件
包裝設計
藝術設計
醫療領域

Education

Hand Molds

Auto Parts

Packaging Design

Art Design

Medical


  • Previous:
  • Next:

  •

    ?Physical Properties (Liquid)?

    Appearance White
    Density 1.11-~1.15g/cm3?@ 25 ℃
    Viscosity 230~290cps @ 26?℃
    Dp 0.13~0.145?mm
    Ec 9.5~10.5?mJ/cm2
    Building layer thickness 0.05~0.12mm

    ?

    Mechanical Properties (Post-Cured)?

    MEASUREMENT? TEST METHOD? VALUE
    90-minute UV post-cure
    Hardness, Shore D ASTM D 2240 75-85
    Flexural modulus, Mpa ASTM D 790 2,592-2,675
    Flexural strength, Mpa ASTM D 790 63-70
    Tensile modulus, MPa ASTM D 638 2,489-2,595
    Tensile strength, MPa ASTM D?638 36-53
    Elongation at break ASTM D 638 15-25%
    Poisson’s Ratio ASTM D 638 0.4-0.44
    Impact strength notched Izod, J/m ASTM D 256 45-70
    Heat deflection temperature, ℃ ASTM D 648 @66PSI 38-50
    Glass transition,Tg DMA,E”peak 40-54
    Coefficient of thermal expension TMA(T<Tg) 90~102*E-6
    Density, g/cm3 ? 1.12-1.18
    Dielectric Constant60 Hz ASTM D 150-98 4.2-5.0
    Dielectric Constant?1 kHz ASTM D 150-98 3.3-4.2
    Dielectric Constant1 MHz ASTM D 150-98 3.2-4.0
    Dielectric?StrengthkV/mm ASTM D 1549-97a 12.8-16.1

    ?
