Large size 3d Printer Information

Short Description:

The second? generation of 3DSL printers-Hi series?

Max build volume: 800*800*550 (mm) (Standard 550mm, depth of resin tank can be tailor made).

With customizable resin tank.

With variable-beam scanning technology.

Max productivity: 400g/h

Resin endurance: 15kg


Product Detail

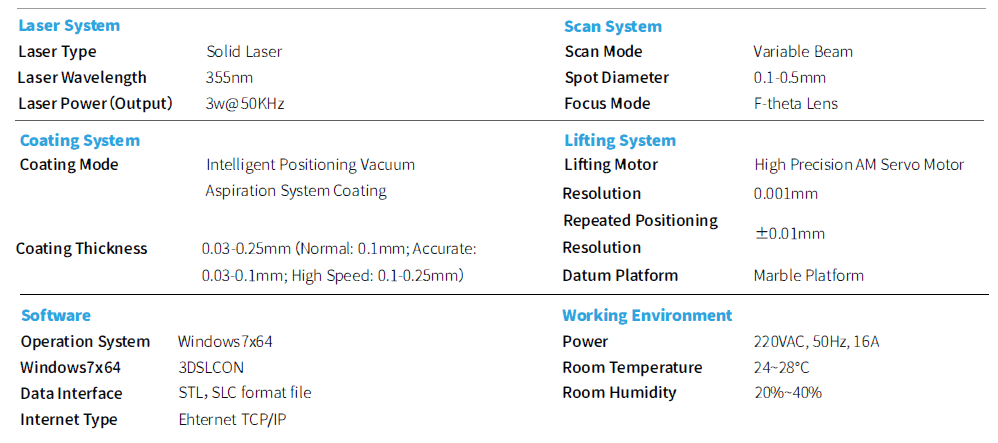

parameters

configuration

Product Tags

RP technology introduction

Rapid Prototyping (RP) is a new manufacturing technology that was first introduced from the United States in the late 1980s. It integrates modern scientific and technological achievements such as CAD technology, numerical control technology, laser technology and material technology, and is an important part of advanced manufacturing technology. Unlike traditional cutting methods, rapid prototyping uses a forming mechanism in which layered materials are superimposed to machine a three-dimensional part prototype. Firstly, the layering software slices the CAD geometry of the part according to a certain layer thickness, and obtains a series of contour information. The forming head of the rapid prototyping machine is controlled by the control system according to the two-dimensional contour information. Solidified or cut to form thin layers of various sections and automatically superimposed into three-dimensional entities

更改1
RP-2

Additive manufacturing

Unlike traditional reductive manufacturing, RP uses a layer-by-layer material accumulation method to process solid models, so it is also called Additive Manufacturing, (AM) or Layered Manufacturing Technology, (LMT).

Characteristics of RP technique

Highly flexible, it can produce any 3D solid models of any complex structure, and the production cost is almost independent of the complexity of the product.
CAD model direct driving, the molding process is completely digital, no special fixtures or tools are required, and design and manufacturing (CAD/CAM) is highly integrated.
High accuracy,±0.1％
Highly reductive, capable of making very fine details, thin walls
Mold surface quality is excellent
Fast speed
Highly automated: the process is fully automated, the process requires no human intervention, and the equipment can be unattended

Applications of RP technology

RP technology is widely used in the areas:

Models (Conceptualization & Presentation):

Industrial design, fast access to concept products, restoration of design concepts,?Exhibition,etc.

Prototypes (Design, Analysis, Verification & Testing):

Design verification and analysis,?Design repeatability and optimization etc.

Patterns/Parts (Secondary Molding & Casting Operations & Small-lot production):

Vacuum injection (silicone mold),Low pressure injection (RIM, epoxy mold) etc.



RP應用更改
RP應用流程更改

Application process of RP

The application process can start either from an object,2D drawings or just an idea. If only the object is available, the first step is to scan the object to get an CAD data, go to revese engineeing process or just amendment or modification and then begin the RP process.

If 2D drawings or idea exists, it is necessary to go to 3D modeling procedure using the special software, and then go to the 3D prining process.

After RP process, you can get the solid model for functional test, assembly test or go to other procedures for casting according to actual needs of clients.



Introduction of SL technology

The domestic name is stereolithography, also known as laser curing rapid prototyping. The principle is: the laser is focused onto the surface of the liquid photosensitive resin and scanned according to the cross-sectional shape of the part, so that it is selectively cured, from point to line to the surface, to complete the curing of one layer, and then the lifting platform is lowered by one layer thickness and recoated with a new layer a resin and cured by laser until the whole solid model is formed.

?

SL 工作原理-英文

Advantage of 2nd Generation of SL 3D Printers of SHDM

High efficiency, and maximum speed can reach 400g/h and the productivity in 24 hours can reach10kg.
Large build volumes, available size are 360*360*300(mm),450*450*330(mm),600*600*400(mm),800*800*550(mm), and other customized build volumes.
Material performance is cheap and highly improved in the aspects of strength, tenacity and high-temperature resistance, suitable for engineering applications.
Obviously improved in the size precision and stability.
Multiple parts can be treated at the same time in the control software and there is perfect parts self-composing function.
Suitable for small batch production.
Unique nest technology of resin tanks with different volume, 1 kg resin can be printed, which is especially suitable for the research and development.
Replaceable resin tank, different resin can be changed easily.
樹脂槽1

Replaceable resin tank

Only pull out and push in, you can print a different resin.

Resin tank of 3DSL series is changeable (Except 3DSL-800).?For the 3DSL-360 printer, the resin tank is with the drawer mode, when replacing the resin tank, it is necessary to lower the resin tank to the bottom and lift two lock catches, and pull the resin tank out. Pour new resin after cleaning the resin tank well, and then lift the lock catches and push the resin tank into the printer and lock well.

3DSL-450 and 3DSL 600 is with the same resin tank system. There are 4 trundles at beneath of the resin tank to facilitate pulling out and pushing in.



Optical system-Powerful solid laser

3DSL series SL 3D printers adopts the high powerful solid laser device of 3W and continuous output wave length is 355nm. Output power is 200mw-350mw, air cooling and water cooling are optional.

(1). Laser Device
(2). Reflector 1
(3). Reflector 2
(4). Beam Expander
(5). Galvanometer

激光器1
振鏡1

High efficiency Galvanometer

Max scanning speed: 10000mm/s
Galvanometer is a special swing motor, its basic theory is same as the current?meter, when a certain current passes through the coil, the rotor will diverge a?certain angle, and the deflection angle is proportional to the current. So the?galvanometer is also called galvanometer scanner. Two vertically installed?galvanometer form two scanning directions of X and Y.

未標題-1

Download brochure

Application areas

btn12
btn7
汽車配件
包裝設計
藝術設計
醫(yī)療領域

Education

Rapid prototypes

Automobile

Casting

Art Design

Medical
